Passive Air Sampling Kit

Price: From $684.00 to $795.00

Product Options

Type:
Orifice Size:

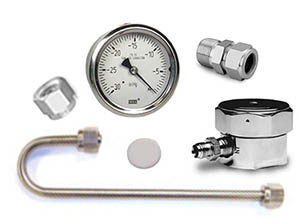

The Passive Air Sampling kit is a bundled package of all of the parts needed to perform passive canister air sampling from 30 minutes to 125 hours.  This kit is available in stainless steel or with inert passivation treatment, and contains the following:



      • Veriflo® SC423XL flow controller
              • Vacuum gauge
                      • 1/4 " NPT critical orifice
                              • 6" Sample Inlet
                                      • 2μm particle filter
                                              • 1/4" Fittings and ferules


                                                   Air sampling canister sold separately.  The table below may be used to determine orifice size, sampling time and sampling rate based on sample size


                                                  1 Liter 6 Liter
                                                  Sampling Time* Orifice Size Sampling Rate Orifice Size Sampling Rate
                                                  0.5 hours ---------- ---------- 0.0090" 80-340 mL/min
                                                  1 hour 0.0020" 8-15 mL/min ---------- ----------
                                                  1.5 hours ---------- ---------- 0.0060" 30-80  mL/min
                                                  2 hours 0.0016" 4-8 mL/min ---------- ----------
                                                  3 hours ---------- ---------- 0.0030" 15-30  mL/min
                                                  4 hours 0.0012" 2-4 mL/min ---------- ----------
                                                  6 hours ---------- ---------- ---------- ----------
                                                  8 hours ---------- ---------- 0.0020" 8-15  mL/min
                                                  12 hours ---------- ---------- 0.0016" 4-8  mL/min
                                                  24 hours 0.0008" 0.5-2 mL/min 0.0012" 2-4  mL/min
                                                  48 hours ---------- ---------- ---------- ----------
                                                  125 hours ---------- ---------- 0.0008" 0.5-2 mL/min

























                                                  *Determined from full vacuum to -5" Hg.
